N19

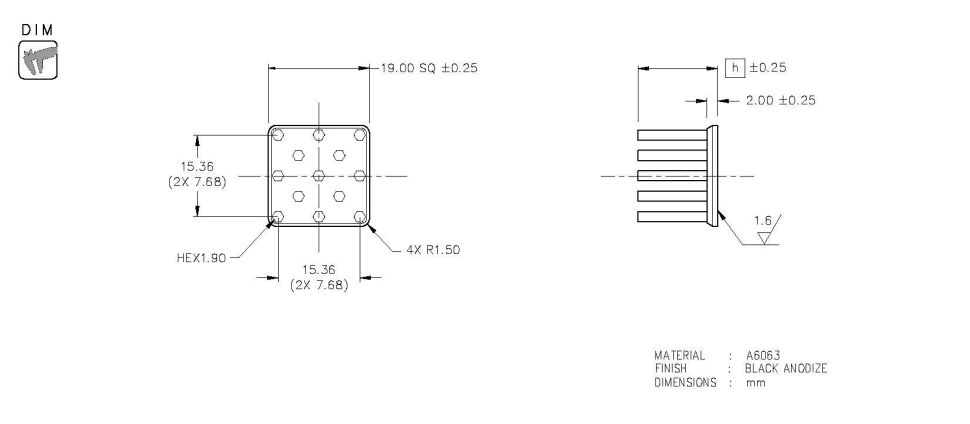

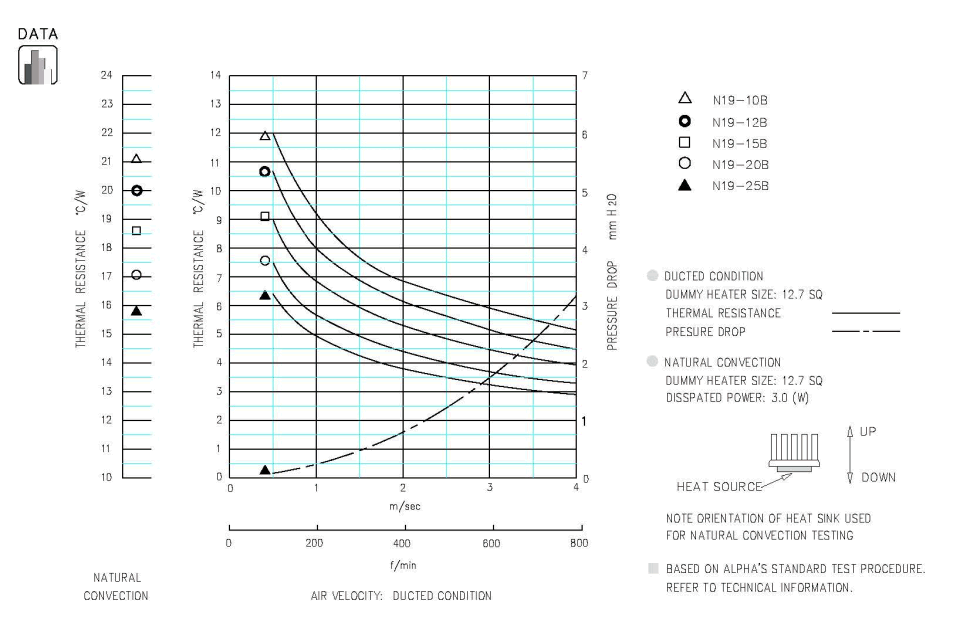

N19 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
N19-10B 10 2.0 2.8 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
N19-12B 12 3 STEP IGES
N19-15B 15 3.3 STEP IGES
N19-20B 20 3.8 STEP IGES
N19-25B 25 4.3 STEP IGES
Select Height
---
---

Specification
