S1519

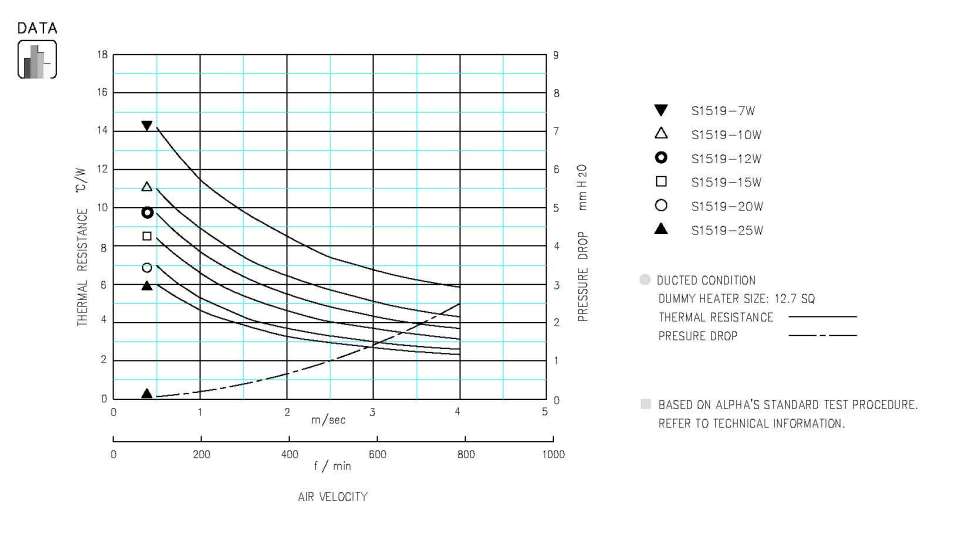

S1519 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
S1519-7W 7 2.0 2.7 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
S1519-10W 10 3.0 STEP IGES
S1519-12W 12 3.3 STEP IGES
S1519-15W 15 3.7 STEP IGES
S1519-20W 20 4.4 STEP IGES
S1519-25W 25 5.1 STEP IGES
Select Height
---
---

Specification
