Online Catalog

ST19

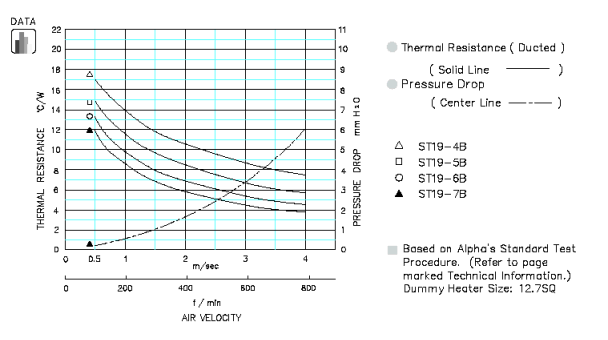

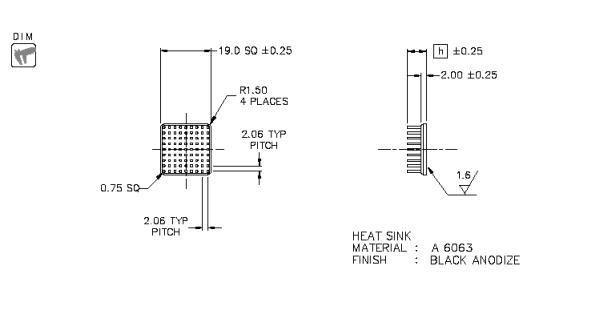

ST19 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
ST19-4B 4 2.0 2.2 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
ST19-5B 5 2.3 STEP IGES
ST19-6B 6 2.4 STEP IGES
ST19-7B 7 2.5 STEP IGES
Specification
