TL19

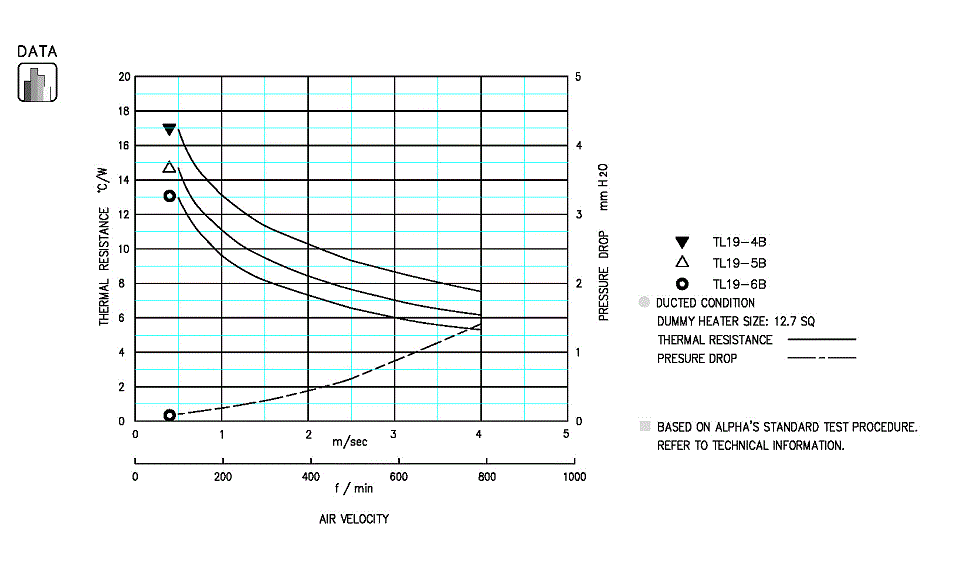

TL19 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
TL19-4B 4 1.5 1.7 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
TL19-5B 5 1.8 STEP IGES
TL19-6B 6 1.9 STEP IGES
Specification
