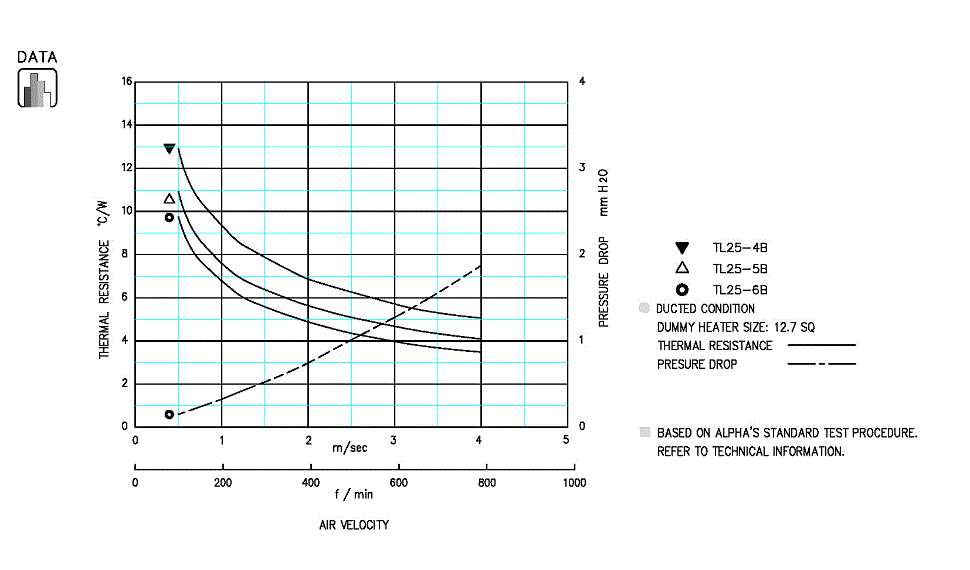

TL25 SPECIFICATION & THERMAL DATA

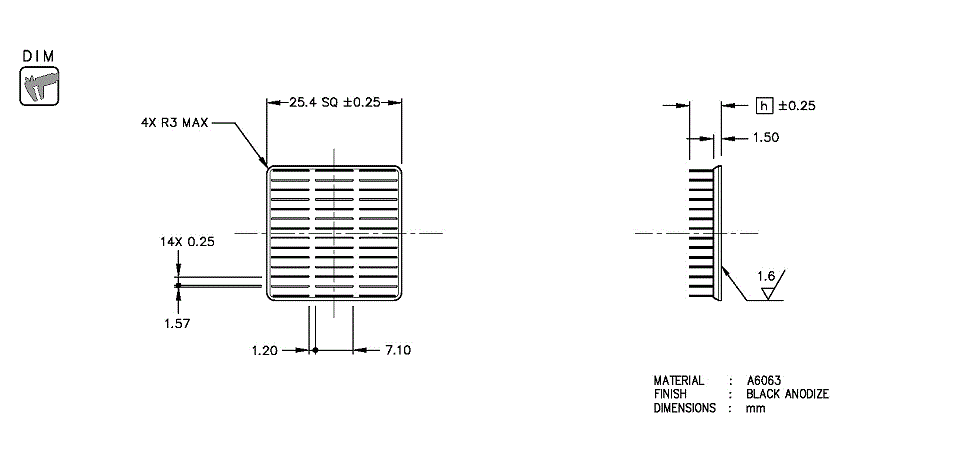

Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
TL25-4B 4 1.5 3.1 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
TL25-5B 5 3.3 STEP IGES
TL25-6B 6 3.5 STEP IGES
Specification
