TL35

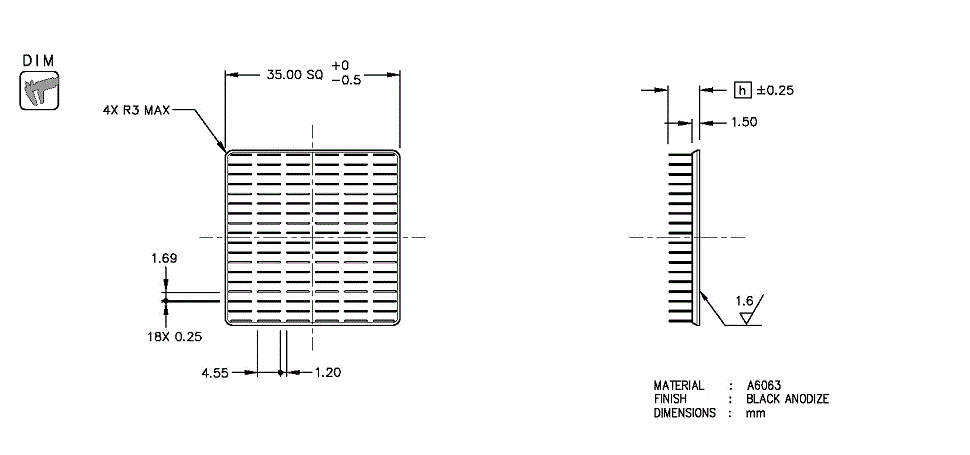

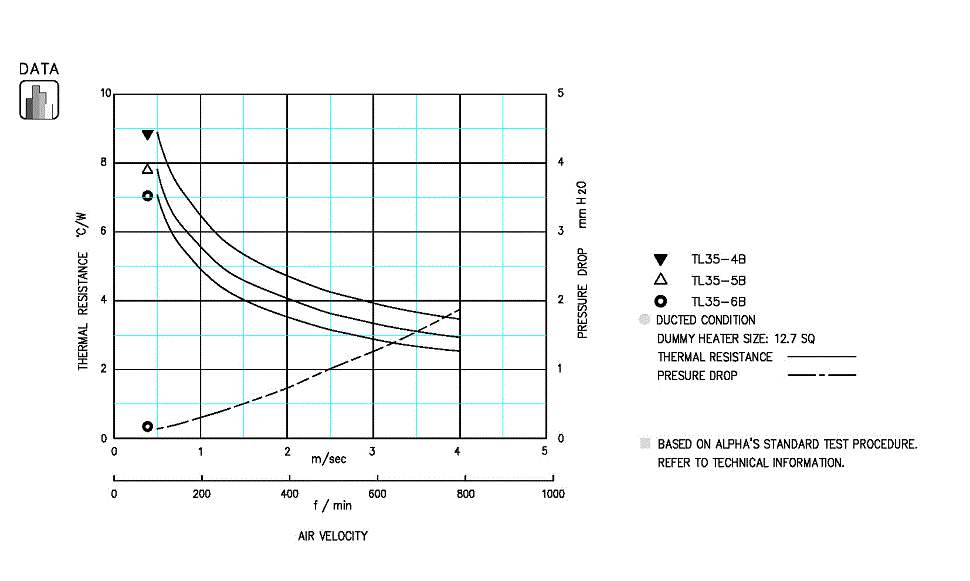

TL35 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
TL35-4B 4 1.5 5.7 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
TL35-5B 5 6.0 STEP IGES
TL35-6B 6 6.4 STEP IGES
Specification
