TL40

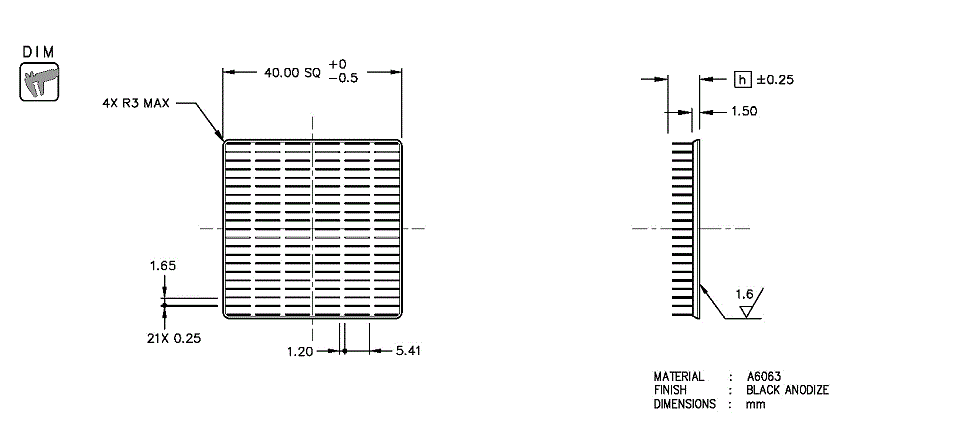

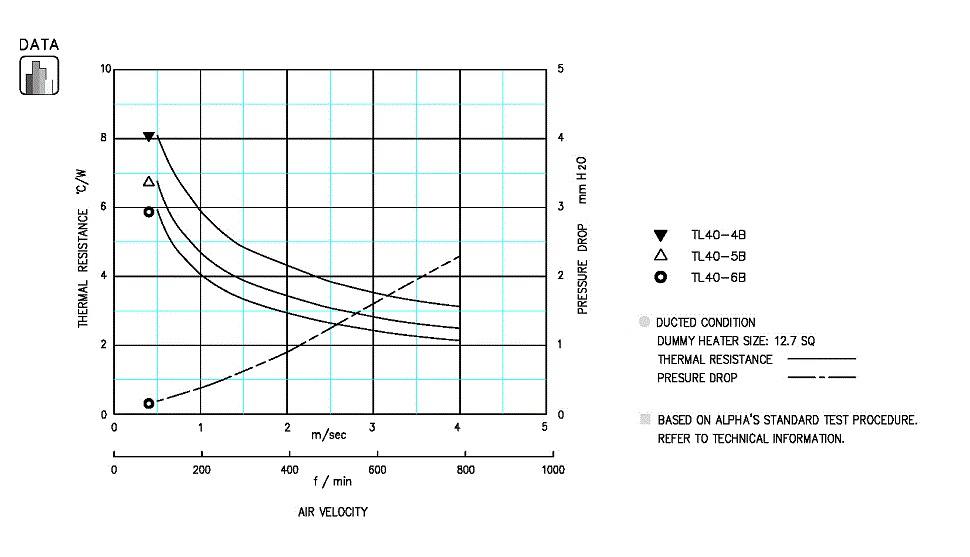

TL40 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
TL40-4B 4 1.5 7.5 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
TL40-5B 5 8.0 STEP IGES
TL40-6B 6 8.4 STEP IGES
Specification
