UB100

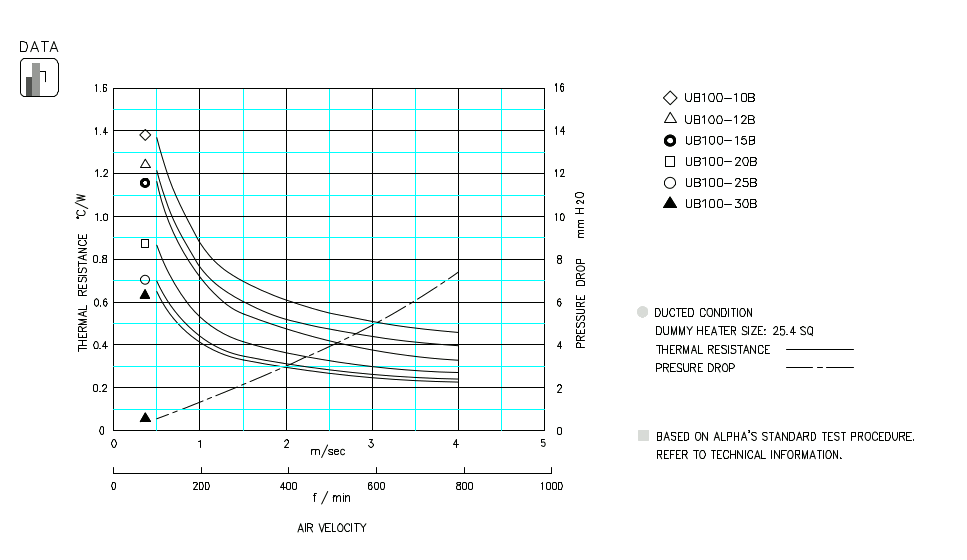

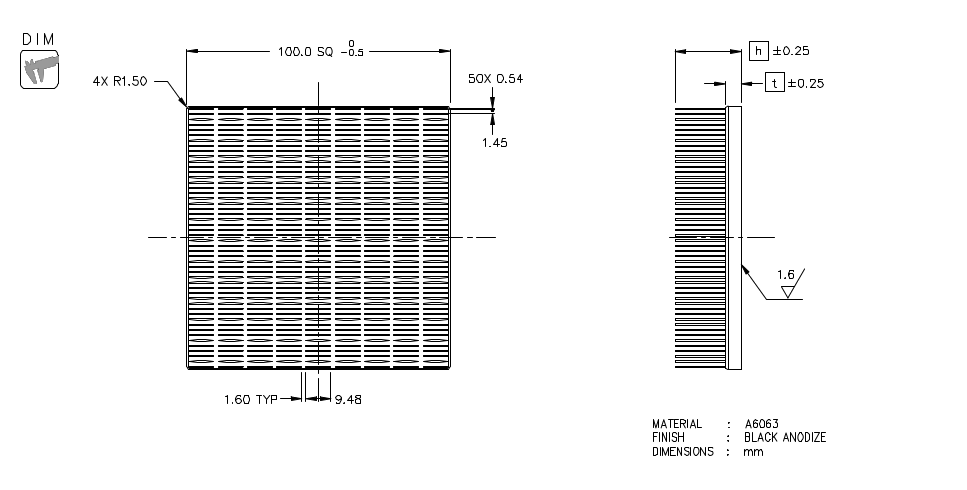

UB100 SPECIFICATION & THERMAL DATA
Specification
  Model Height
h (mm)
Base
(mm)
Weight
(g)
Download Availability / Price / Order Option
UB100-15B 15 6 209 catalog

DXF

RoHS

REACH
STEP IGES
Quantity
+
UB100-20B 20 236 STEP IGES
UB100-25B 25 264 STEP IGES
UB100-30B 30 291 STEP IGES
Select Height

Specification
