UB50

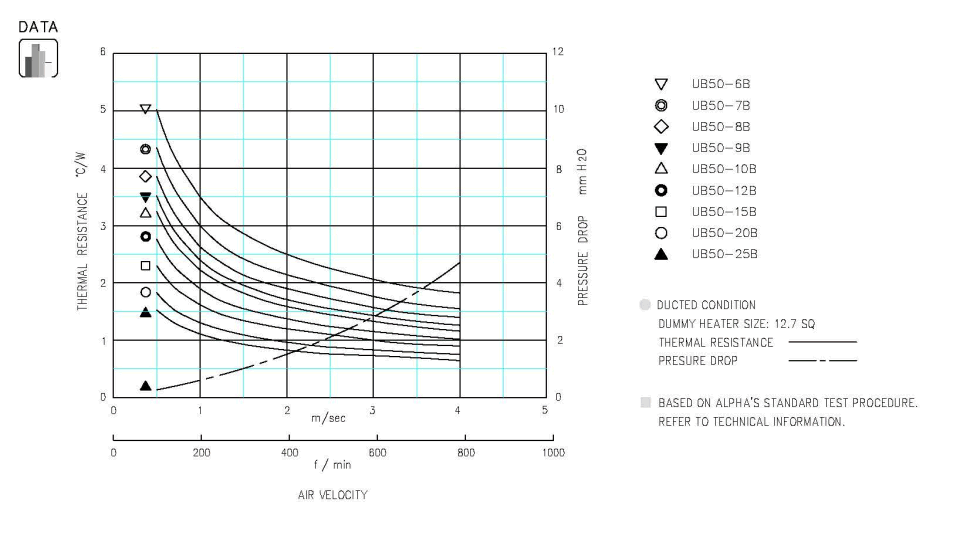

UB50 SPECIFICATION & THERMAL DATA

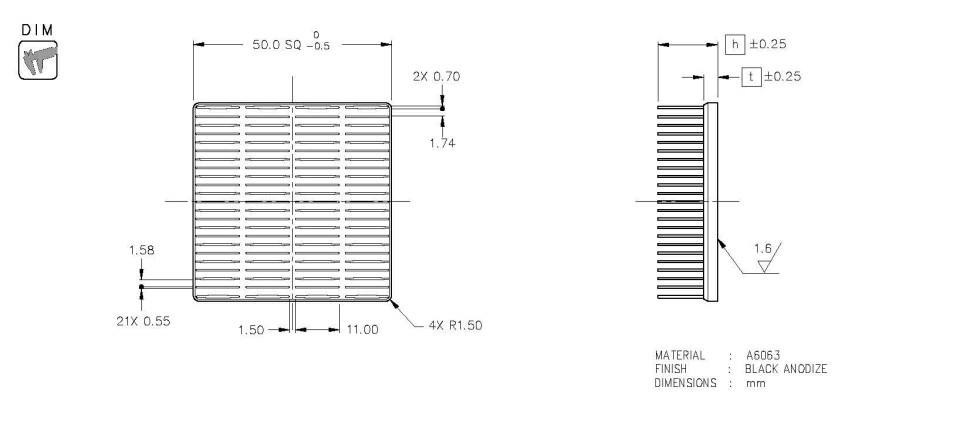

Specification
  Model Height
h (mm)
Base
t (mm)
Weight
(g)
Download Availability / Price / Order Option
UB50-6B 6 2.5 21.0 catalog

DXF

RoHS

REACH

STEP IGES
Quantity
+
UB50-7B 7 22.3 STEP IGES
UB50-8B 8 23.7 STEP IGES
UB50-9B 9 25.0 STEP IGES
UB50-10B 10 3.5 30.5 STEP IGES
UB50-12B 12 34.6 STEP IGES
UB50-15B 15 38.0 STEP IGES
UB50-20B 20 45.5 STEP IGES
UB50-25B 25 53.0 STEP IGES
Select Height
---
---

Specification
