Announcement of New Pushpin Attached Heat Sink Base Sizes (30 and 35mm square)
Issue Date: 2017/8/3

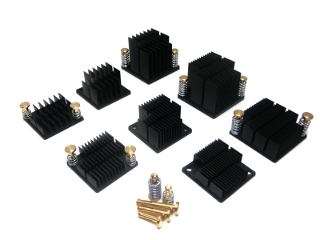

Heat Sinks with integrated Attachment Tabs
Alpha has expanded its wide range of off-the-shelf products to meet with our customer's requirements.
To support increasing requests for additional standard sizes, we have added 30x30mm and 35x35mm base sizes to our LPDM, LPDH, UBM, UBH, ZM and ZH series heat sinks.
These additions to our standard catalog allow the most appropriate heat sink configuration to be chosen for a given application. This will eliminate the additional cost and lead time associated with a custom part.

Details of new size:

Model nameBase size (mm)Height(mm)
LPDM series 30 x 30
35 x 35
8, 10, 12, 15, 20, 25
LPDH series
UBM series
UBH series
ZM series 8, 9.5, 12.7
ZH series

Please visit our online catalog - "New Pushpin Attached Heat Sinks" Series for details.
Shipment will begin on 3 Augsut 2017.
