Announcement of New Pushpin Attached Heat Sinks
Issue Date: 2018/04/7

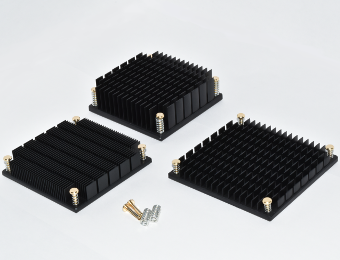

SS Series Picture

Alpha has expanded its wide range of off-the-shelf products to meet customer requirements.

We have added heat sinks to our standard catalog to support requests for larger heat sinks mounted with pushpin and springs.

Previously UB and LPD series heat sinks over 70mm square could not be attached with pushpins and springs unless a custom drawing and part nunmber was created. These new UBP and LPDP series heat sinks have been designed specifically for pushpin and spring attachment. Four pushpins and springs will be used to accommodate the greater heat sink mass.

Customers can choose the most appropriate heat sink configuration for a given application using UB or LPD fin pattern options. Customers can easily adjust the attachment force using our online push pin and spring selection tool.

New Pushpin Attached Heat Sinks:
Model name Base size (mm) Height (mm)
UBP**-**B 80x80 10, 12, 15, 20, 25
90x90 10, 12, 15
LPDP**-**B 80x80 10, 12, 15, 20, 25
90x90 10, 12, 15

Please visit our online catalog - Pushpin Heat Sinks for additional details.
Shipments will begin on April 7th of 2018.
